Brand: AS-PL
SKU: S4022
Price: 553.3 PLN
Availability: InStock

rozruszniki -

Line

Index: S4022 | EAN: 5901259422566 | Producent: AS-PL | Waga: 3.598 kg

Status produktu: Aktywny

Cechy produktu:

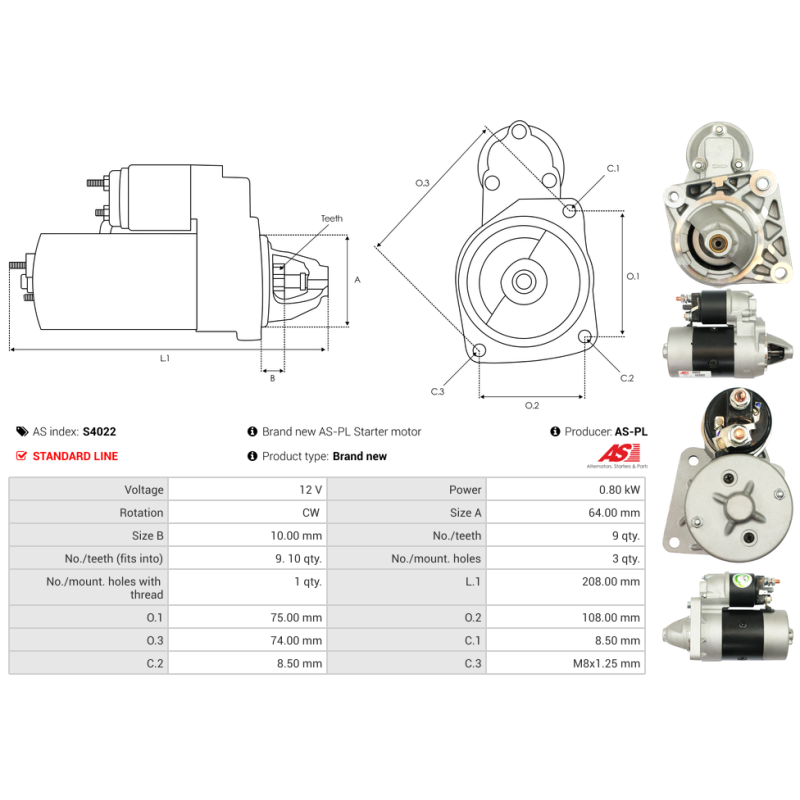

Size A (mm) 64.00

Size B (mm) 10.00

Voltage (V) 12

L.1 (mm) 208.00

Power (kW) 0.80

No./mount. holes (szt.) 3

No./mount. holes with thread (szt.) 1

No./teeth (fits into) (szt.) 9. 10

Rotation CW

No./teeth (szt.) 9

O.1 (mm) 75.00

O.2 (mm) 108.00

O.3 (mm) 74.00

C.1 (mm) 8.50

C.2 (mm) 8.50

C.3 (mm) M8x1.25

Numer referencyjny:

PRSL014 3EFFE

PRSS169 3EFFE

STRL014 3EFFE

STRL126 3EFFE

STRS169 3EFFE

STRS233 3EFFE

AZMT-53-010-1109 A.Z. MEISTERTEILE

AC-CBS0796 ACAUTO

ANM15494X ANDEL

S4022 AS-PL

AES1298 AUTOELECTRO

AES9189 AUTOELECTRO

BOL-C011090 BOLK

0001113006 BOSCH

0001116005 BOSCH

0986017030 BOSCH

0986017031 BOSCH

F000AL0319 BOSCH

STA0005R BOVEZ

111422 CARGO

F032111422 CARGO

CST30162AS CASCO

CST30162OS CASCO

CST30162RS CASCO

3829 CEVAM

22.0796 CQ

22.0796M CQ

020402 DA SILVA

DRS2555 DELCO

DRS3274 DELCO

DRS3555 DELCO

DS4384 DELCO

318203102 DRI

11679 EAI

11883 EAI

STR00100 ELECTROLOG

STR90057 ELECTROLOG

807000.0 ELMOT

25-1480 ELSTOCK

25-3055 ELSTOCK

220024 ERA

220182 ERA

220182A ERA

103555 FARCOM

46231531 FIAT

46429594 FIAT

46430785 FIAT

46473785 FIAT

46476785 FIAT

46518059 FIAT

46548653 FIAT

55196400 FIAT

71721252 FIAT

71721253 FIAT

71721308 FIAT

71752055 FIAT

71782353 FIAT

7735162 FIAT

7772456 FIAT

7772459 FIAT

7785449 FIAT

7796598 FIAT

8017030 FRIESEN

SG0139 GHIBAUDI

GS223200-A GPARTS

CS796 HC PARTS

8EA012526-931 HELLA

8EA732651-001 HELLA

42017030 HERTH+BUSS

42114903 HERTH+BUSS

11.130.421 ISKRA / LETRIKA

AZE1202 ISKRA / LETRIKA

AZE1511 ISKRA / LETRIKA

IS0763 ISKRA / LETRIKA

STE0796 KRAUF

10796 KUHNER

10796H KUHNER

10796V KUHNER

LES0342 LE PART

331115 LOGISTIK

331344 LOGISTIK

LRS00989 LUCAS

LRS02104 LUCAS

LRS2104 LUCAS

LRS989 LUCAS

063521130060 MAGNETI MARELLI

63101002 MAGNETI MARELLI

63102007 MAGNETI MARELLI

63103015 MAGNETI MARELLI

63201002 MAGNETI MARELLI

63222880 MAGNETI MARELLI

63222888 MAGNETI MARELLI

63222889 MAGNETI MARELLI

63222890 MAGNETI MARELLI

63222936 MAGNETI MARELLI

63223200 MAGNETI MARELLI

943201015010 MAGNETI MARELLI

944280170300 MAGNETI MARELLI

8212205 POWERMAX

88212205 POWERMAX

20500989 PRESTOLITE

500.514.093.000 PSH

500.514.093.008 PSH

500.514.093.050 PSH

500.514.093.058 PSH

500.514.093.215 PSH

500.514.093.265 PSH

500.514.093.266 PSH

500.514.093.311 PSH

500.514.093.396 PSH

500.514.093.500 PSH

500.514.093.505 PSH

500.514.093.605 PSH

S132.635 PSH

S143.934 PSH

20404261BN REAL

20404261RC REAL

20404261RE REAL

RNL1703 RNL

RNLD6RA59 RNL

6030162.0 SANDO

6030162.2 SANDO

6030162.4 SANDO

S12MA0044A2 SIDAT

S12VA0044 SIDAT

MAV321620 SIOM

MAV321620A SIOM

SS221 SOVEREIGN

455553 VALEO

726020 VALEO

726820 VALEO

D6RA59 VALEO

ND159 VALEO

VS287 VALEO

30989N WAI / TRANSPO

30989R WAI / TRANSPO

STR52007 WOODAUTO

VALD6RA59 WOODAUTO

Zastosowania:

AUTOBIANCHI FIAT LANCIA

Model	Kod silnika	Zakres dat
BRAVA (182_) 1.2 16V 80
	182B2.000	01-12-1998 - 01-12-2002
	188A5.000	01-10-2000 - 01-10-2001
BRAVO I (182_) 1.2 16V 80
	182B2.000	01-12-1998 - 01-10-2000
	188A5.000	01-10-2000 - 01-10-2001
CINQUECENTO (170_) 1.1 Sporting (170AH)
	176B2.000	01-10-1994 - 01-01-1998
CINQUECENTO VAN (170_) 1.1 iE (170AH)
	176B2.000	01-10-1994 - 01-02-1998
MAREA (185_) 1.2 16V
	182B2.000	01-10-1998 - 01-05-2002
MAREA Weekend (185_) 1.2 16V
	182B2.000	01-10-1998 - 01-05-2002
PALIO (178_, 171_, 371_) 1.6 16V
	178B3.000	01-04-1996 - 01-10-2002
PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.6 16V (178DXD1A)
	178B3.000	01-06-1996 - 01-02-2001
PUNTO (176_) 1.2 16V
	176B9.000	01-04-1997 - 01-09-1999
PUNTO (176_) 1.4 GT Turbo (176AS_)
	176B6.000	01-09-1996 - 01-07-1999
PUNTO (176_) 55 1.1
	176A6.000	01-09-1993 - 01-09-1999
	176B2.000	01-09-1993 - 01-09-1999
PUNTO (176_) 60 1.2
	176A7.000	01-01-1994 - 01-09-1999
PUNTO (176_) 60 1.2 (176AP, 176AR, 176AQ, 176BB)
	176B1.000	01-09-1993 - 01-09-1999
	176B4.000	01-09-1993 - 01-09-1999
PUNTO (176_) 75 1.2
	176A8.000	01-10-1993 - 01-09-1999
PUNTO (188_) 1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,...
	188A5.000	01-09-1999 - 01-04-2006
PUNTO (188_) 1.2 60 (188.030, .050, .130, .150, .230, .250)
	188A4.000	01-09-1999 - 01-12-2010
PUNTO (188_) 1.2 Bifuel
	188A4.000	01-08-2007 - 01-03-2012
PUNTO (188_) 1.2 Bipower (188BXA1A)
	188A4.000	01-08-2001 - 01-05-2003
PUNTO (188_) 1.2 Natural Power
	188A4.000	01-09-2003 - 01-03-2012
PUNTO (188_) 1.2 Natural Power (188BXA1A)
	188A4.000	01-04-2004 - 01-04-2006
PUNTO Convertible (176_) 60 1.2
	176A7.000	01-04-1994 - 01-06-2000
PUNTO Convertible (176_) 60 1.2 (176AR_, 176BR_)
	176B4.000	01-05-1995 - 01-06-2000
	176B1.000	01-05-1995 - 01-06-2000
PUNTO Convertible (176_) 85 16V 1.2
	176B9.000	01-04-1997 - 01-06-2000
PUNTO Hatchback Van (188_) 1.2 60
	188A4.000	01-02-2000 - 01-10-2009
PUNTO Hatchback Van (188_) 1.2 Natural Power (188CXA1A)
	188A4.000	01-01-2003 - 01-12-2010
PUNTO Van (176_) 1.1
	176B2.000	01-04-1996 - 01-02-2000
SEICENTO / 600 (187_) 1.1 (187AXB, 187AXB1A, 187AXC1A02)
	187A1.000	01-01-1998 - 01-01-2010
	176B2.000	01-01-1998 - 01-01-2010
SEICENTO / 600 Hatchback Van (287_) 1.1 (187CXB/C)
	176B2.000	01-01-1998 - 01-01-2010
SIENA (178_, 172_, 372_) 1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT)
	178B5.000	01-09-1998 - 01-12-2002
SIENA (178_, 172_, 372_) 1.3 (178CXS1AAI, 178BYA1AAT, 178CYA1AAT)
	178C4.066	01-09-2001 - 01-12-2012
	188A4.000	01-09-2001 - 01-12-2012
UNO (146_, 158_) 1.0 (146E)
	156A2.000	01-06-1989 - 01-02-1992
UNO (146_, 158_) 1.1
	160A3.000	01-04-1986 - 01-06-2006
UNO (146_, 158_) 45 i.e. 1.0 (146E, 146A)
	156A2.246	01-10-1984 - 01-10-1995
	156A2.000	01-10-1984 - 01-10-1995

Model	Kod silnika	Zakres dat
Y (840_) 1.1 (840AE)
	176B2.000	01-11-1995 - 01-09-2003
Y (840_) 1.2 (840AA, 840AF1A)
	840A3.000	01-03-1996 - 01-09-2003
	188A4.000	01-03-1996 - 01-09-2003
Y (840_) 1.2 16V (840AD)
	176B9.000	01-04-1997 - 01-09-2003
Y (840_) 1.2 16V (840AG1A)
	188A5.000	01-10-2000 - 01-09-2003
Y10 (156_) 1.1 Fire (156AG)
	176B2.000	01-01-1995 - 01-12-1995
Y10 (156_) 1.1 Fire All-wheel Drive (156AG)
	176B2.000	01-01-1995 - 01-12-1995
Y10 (156_) 1.1 i.e. Fire (156AG)
	156C.046	01-07-1989 - 01-09-1995
Y10 (156_) 1.1 i.e. Fire All-wheel Drive (156AG)
	156C.046	01-09-1992 - 01-12-1995
Y10 (156_) 1.3 i.e. (156AF)
	146A5.046	01-02-1989 - 01-12-1995
	156B.000	01-02-1989 - 01-12-1995

Produkty powiązane:

Producent: HC-CARGO

Line: Standard

Napiecie: 12

Kier. obrotu: CW

Informacje o produkcie: BN

Stosowany w: Fiat

Dlugosc calkowita w mm: 206.00

Liczba otworów montazowych: 3 (1)

kW: 0.8

B+: M8

Liczba zebów: 9, 10

Typ przekladni: DD/GR

Kolnierz montazowy: 64.00

Dlug. bendiksu: 11.50

Otwór montazowy 1 mm: 8.20

Otwór montazowy 2 mm: 9.20

Odleglosc (tyl): 152.50

Odleglosc (przód): 47.00

Zacisk 50: M6

Pozycja/50: 45

Odleglosc w mm: 74.50

Typ bendiksu: Stal

Waterproof: Nie

Oil sealed: Nie

Otwór montazowy 3: M8

Odleglosc 2: 109.50

Odleglosc 3: 73.00
